LHZK Zalakaros Airport

Last updated: 2024.12.13.

1. Aerodrome identification

Aerodrome location indicator: LHZK

Aerodrome name: Zalakaros Airport

Aerodrome place name: Zalakaros

2. Contact

Address: 8749 Zalakaros, Zrínyi utca Újmajor külterület
Phone: +36-30/936-0477, +36-30/496-0233
E-mail: info@aviado.hu

3. Gallery

4. Charts

Name	Identification	Download	Effective date

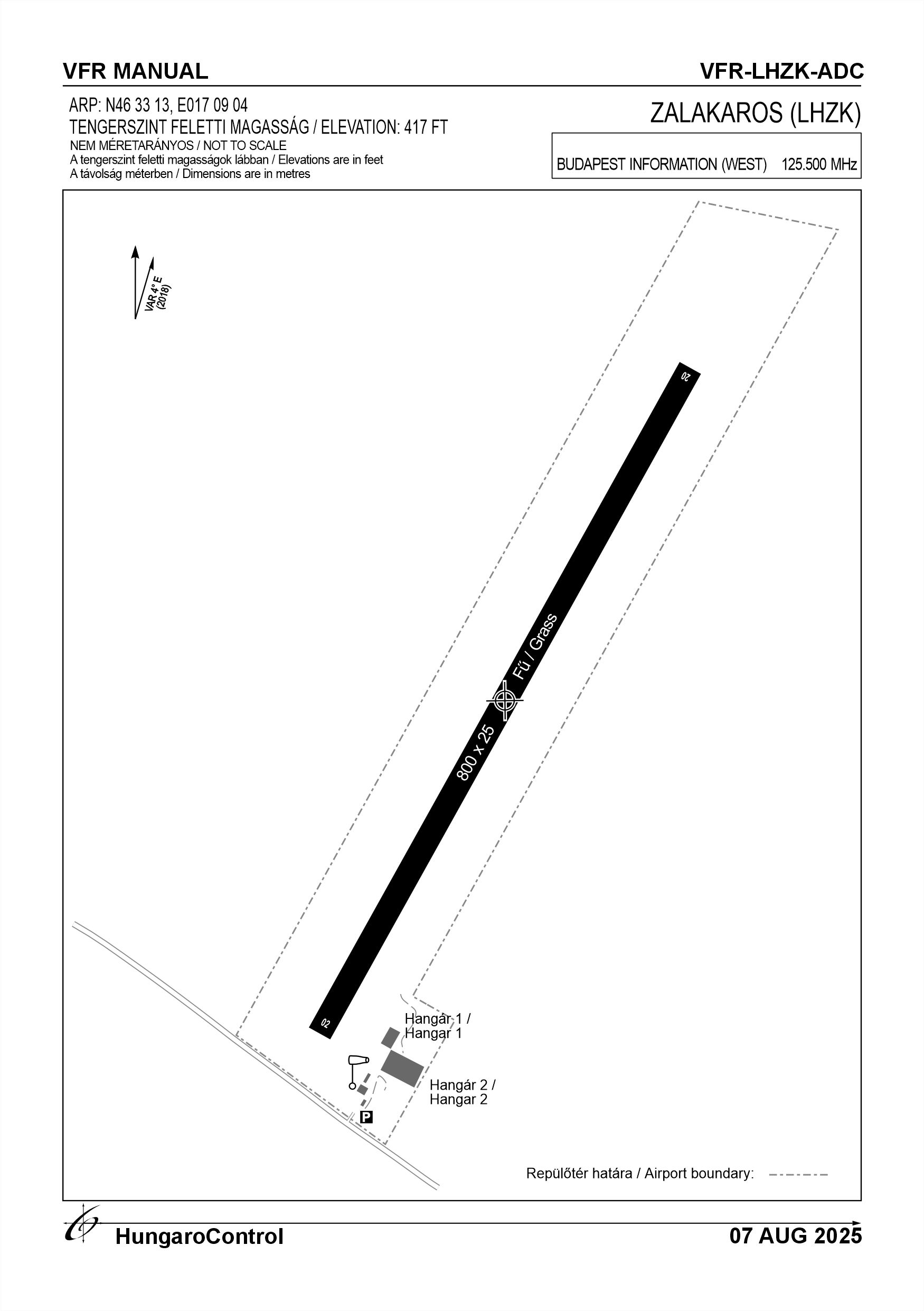

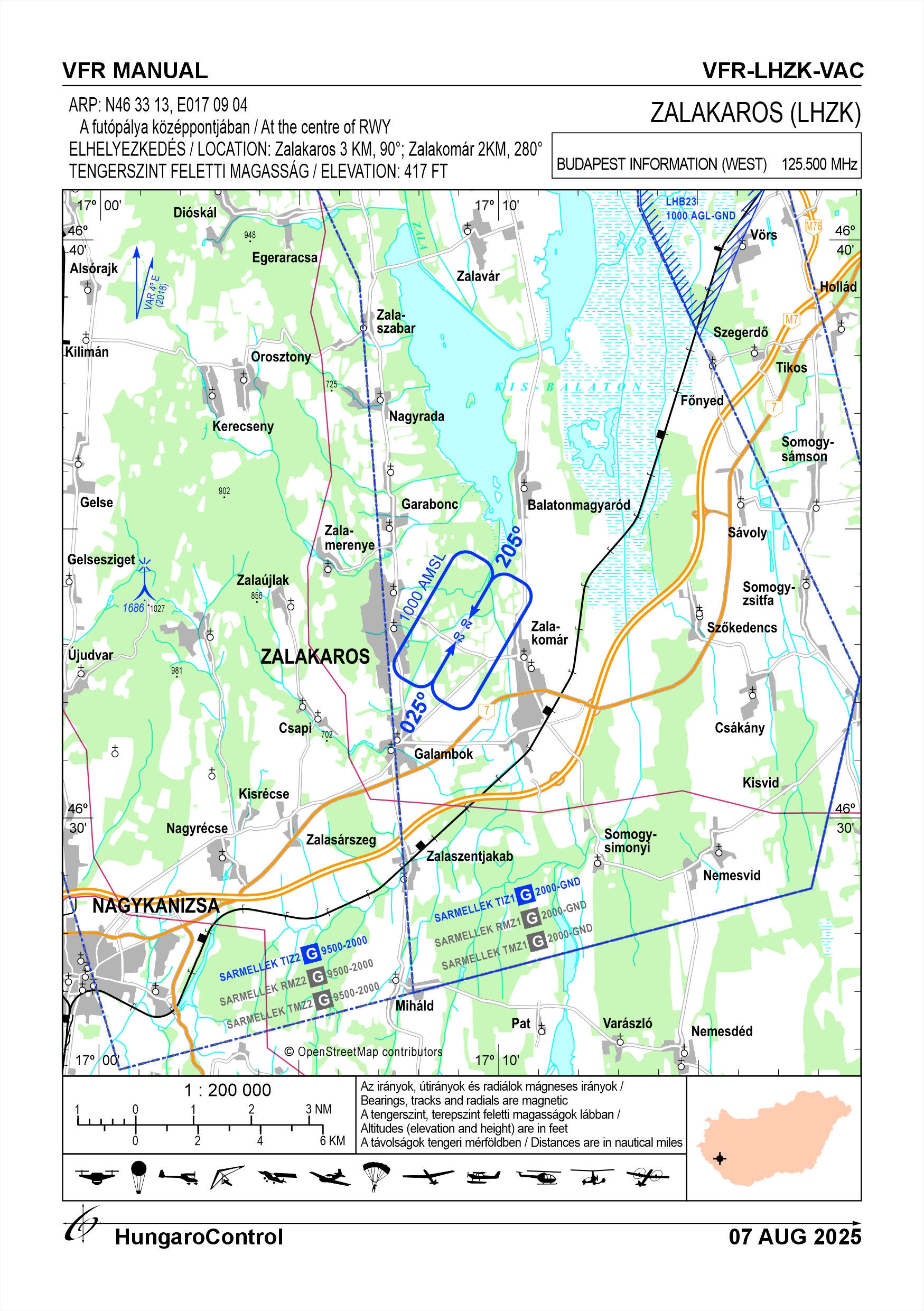

ADC, VAC	VFR-LHZK-ADC, VFR-LHZK-VAC		2024.03.21.

5. Aerodrome geographical and administrative data

ARP data

Coordinates: 463313N 0170904E

Site at aerodrome: At the centre of RWY

Location of aerodrome

Distance from city (KM): Zalakaros 3 KM

Direction from city: E

Elevation: 417 FT

Magnetic variation data

Degree of magnetic variation ( °): 4° E

Annual change ( °): +0.1°

Year of survey: 2018

Aerodrome operator data

Name: Aviado Kft.

Address: 8900 Zalaegerszeg, Sport u. 7.

Phone: +36-30/936-0477, +36-30/496-0233

Fax: NIL

Web: https://aviado.hu

E-mail: info@aviado.hu

Aerodrome data

Name: 8749 Zalakaros, Zrínyi utca Újmajor külterület

Phone: +36-30/496-0233

Fax: NIL

Web: https://lhzk.hu

E-mail: info@aviado.hu

AFS: NIL

SITA: NIL

Others: NIL

Type of traffic allowed at the aerodrome: VFR

Remarks: The airfield can only be used with the authorization of the owner or operator except aircrafts in emergency

6. Air traffic services communication facitlities

Service designation	Call sign	Channel	Languages used	Hours of operation	Remarks
NIL	NIL	NIL	NIL	NIL	NIL

7. Operation hours

AD Administration: PPR

Customs and immigration: NIL

Health and sanitation: NIL

AIS Briefing Office: NIL

ATS Reporting Office (ARO): NIL

MET Briefing Office: NIL

ATS: NIL

Fuelling: NIL

Handling: NIL

Security: Available

De-icing: NIL

Remarks: NIL

8. Available handling services and facilities

Cargo-handling facilities: NIL

Fuel types: NIL

Oil types: NIL

Fuelling facilities and capacity: NIL

De-icing facilities: NIL

Hangar space for visiting aircraft: 2 glider, max. 18 m wingspan

Repair facilities for visiting aircraft: NIL

Remarks: NIL

9. Passenger facilities

Hotels: In the city

Restaurants: In the city

Transportation: Taxi

Medical facilities: Frist aid

Bank and Post Office: In the city

Tourist Office: In the city

Remarks: NIL

10. Available rescue and fire fighting services

Aerodrome catogory for fire fighting: NIL

Available rescue and fire fighting services: NIL

Rescue and fire fighting equipment: Helmet, gloves, axe, wire cutters, 2 fire extinguishers with 6 kg powder

Capability for removal of disabled aircraft: NIL

Remarks: NIL

11. Clearing

Types of clearing equipment: NIL

Clearance priorities: NIL

Remarks: NIL

12. Aprons

Designation	Surface	Strength	Remarks
Apron	Grass	2 t	NIL

13. Taxiways

Designation	Surface	Strength	Width (M)	Remarks
TWY	Grass	NIL	NIL	NIL

14. Checkpoints

Altimeter checkpoints and locations data

Coordinates: NIL

Technical data: NIL

VOR checkpoints: NIL

INS checkpoints: NIL

Remarks: NIL

15. Surface movement guidance and control system and markings

Use of aircraft stand ID signs, TWY guide lines and visual docking/parking guidance system of aircraft stands: NIL

RWY and TWY markings and lighting: NIL

Stop bars: NIL

Remarks: NIL

16. Runways (RWY)

RWY designator	True bearing	Magnetic bearing	Length (M)	Width (M)	Strength	Surface	Remarks
02	029°	025°	800	20	2 t	Grass	NIL
20	209°	205°	800	20	2 t	Grass	NIL

17. Aerodrome obstacles

RWY designator	Obstacle type	Elevation	Height	Coordinates	Remarks
02	Antenna	515 M	NIL	NIL	NIL
20	Antenna	515 M	NIL	NIL	NIL

18. Stopways (SWY)

RWY designator	Length (M)	Width (M)	Strength	Surface	Slope (%)	Remarks
02	NIL	NIL	NIL	NIL	NIL	NIL
20	NIL	NIL	NIL	NIL	NIL	NIL

19. Clearways (CWY)

RWY designator	Length (M)	Width (M)	Slope (%)	Remarks
02	NIL	NIL	NIL	NIL
20	NIL	NIL	NIL	NIL

20. STRIP

RWY designator	Length (M)	Width (M)	Remarks
02	860	60	NIL
20	860	60	NIL

21. RESA

RWY designator	Length (M)	Width (M)	Surface	Obstacle free zone (OFZ)	Remarks
02	NIL	NIL	NIL	NIL	NIL
20	NIL	NIL	NIL	NIL	NIL

22. Declared distances

RWY designator					Remarks
02	800	550	800	800	NIL
20	800	800	800	550	NIL

23. Approach lighting

RWY designator	Type	Length (M)	Intensity	Remarks
02	NIL	NIL	NIL	NIL
20	NIL	NIL	NIL	NIL

24. Threshold lighting

RWY designator	Colour	Wing bar lights	Remarks
02	NIL	NIL	NIL
20	NIL	NIL	NIL

25. Visual approach slope indicator system lighting

RWY designator	Type	Data	Remarks
02	NIL	NIL	NIL
20	NIL	NIL	NIL

26. Touchdone zone lighting

RWY designator	Length of lighting (M)	Remarks
02	NIL	NIL
20	NIL	NIL

27. Runway centreline lighting

RWY designator	Length (M)	Spacing (M)	Colour	Intensity	Remarks
02	NIL	NIL	NIL	NIL	NIL
20	NIL	NIL	NIL	NIL	NIL

28. Runway edgeline lighting

RWY designator	Length (M)	Spacing (M)	Colour	Intensity	Remarks
02	NIL	NIL	NIL	NIL	NIL
20	NIL	NIL	NIL	NIL	NIL

29. Runway end lighting

RWY designator	Colour	Remarks
02	NIL	NIL
20	NIL	NIL

30. Runway wing bars lighting

RWY designator	Colour	Remarks
02	NIL	NIL
20	NIL	NIL

31. Stopway lighting

RWY designator	Length of lighting (M)	Colour	Remarks
02	NIL	NIL	NIL
20	NIL	NIL	NIL

32. Other lighting, secondary power supply

ABN/IBN location, charasteristics and hours of operation: NIL

LDI location and lighting: NIL

Anemometer location and lighting: NIL

4Centre line lighting: NIL

TWY edge line lighting: NIL

Secondary power supply: NIL

Switch-over time: NIL

Remarks: NIL

33. Helicopter landing area

Coordinates TLOF or THR of FATO: NIL

TLOF and/or FATO elevation: NIL

TLOF and FATO area marking: NIL

TLOF and FATO area dimensions (M): NIL

TLOF and FATO area surface: NIL

TLOF and FATO area strength: NIL

True BRG of FATO: NIL

MAG BRG of FATO: NIL

Declared distances available: NIL

APP and FATO lighting: NIL

Remarks: NIL

34. Meteorological information provider

Associated MET Office: HungaroMet Magyar Meteorológiai Szolgáltató Nonprofit Zrt. (HungaroMet Zrt.), Unit of Aviation Meteorology

Hours of service: H24

Office responsible for TAF preparation: HungaroMet Magyar Meteorológiai Szolgáltató Nonprofit Zrt. (HungaroMet Zrt.), Unit of Aviation Meteorology

Periods of validity: NIL

Interval of issuance: NIL

Type of landing forecast: NIL

Landing forecast interval of issuance: NIL

Briefing/consultation provided: Written briefing: https://aviation.met.hu;
Consultation via phone: +36-90/603-424;
Consultation via e-mail: rvo@met.hu;

Flight documentation: Charts, abbreviated plain language text

Language(s) used: HU, EN

Charts and other information available for briefing or consultation: Charts, aerodrome reports and forecasts in EUR region, area forecasts, MET. observations and warnings in Budapest FIR

Supplementary equipment available for providing information: Self-briefing via aviation.met.hu

ATS Units provided with information: Budapest FIC (on request)

Remarks: NIL

35. Air traffic service airspace

Designation: SÁRMELLÉK TIZ1, SÁRMELLÉK TIZ2

Lateral limits: SÁRMELLÉK TIZ1: 465232N 0170443E - 465233N 0171252E - 464035N 0171331E - 463224N 0171903E - 462847N 0171750E - 462659N 0170752E - 463919N 0170630E - 465010N 0165907E - 465232N 0170443E

SÁRMELLÉK TIZ2: 465211N 0164912E - 465233N 0171252E - 463423N 0171944E - 462847N 0171750E - 462539N 0170031E - 465211N 0164912E

Vertical limits (FT): SÁRMELLÉK TIZ1: 9500 FT (2900 M) AMSL - 2000 FT (600 M) AMSL

SÁRMELLÉK TIZ2: 2000 FT (600 M) AMSL - GND

Airspace classification: F

ATS unit call sign: BALATON INFO

Languages used: HU, EN

Transition altitude (FT): 9000 FT AMSL

Remarks: AFIS (TIZ1 + TIZ2) operational days: LHSM as AD

36. Radio navigation and landing aids

Type of aid	Identification	Frequencies (MHZ, CH)	hours of operation	Position of transmitting antenna coordinates	Elevation of DME transmitting antenna (FT)	Remarks
NIL	NIL	NIL	NIL	NIL	NIL	NIL

37. Local aerodrome regulations

1. The traffic circle for RWY 02:
The direction of the traffic circle is LEFT or RIGHT.
Height of the traffic circle: 300 m / 1000 FT / AGL.
Take-off direction: 25°.
Take-off: after a run-up, climb in a straight line on a heading of 25°.

2. The traffic circle for RWY 20:
The direction of the traffic circle is LEFT or RIGHT.
Height of the traffic circle: 300 m / 1000 FT / AGL.
Take-off direction: 205°.
Take-off: after a run-up, climb in a straight line on a heading of 205°.

Activities at the airport (Yes / No)

Unmanned aerial vehicle (D): Yes

Ballon (B): Yes

Ultralight (U): Yes

Hang glider (N): Yes

Short take-off and landing (R): Yes

Landplane (L): Yes

Paraglider (P): Yes

Glider (G): Yes

Amphibian (A): Yes

Helicopter (H): Yes

Gyrocopter (G): Yes

Tilt-wing aircraft (T): Yes

Other (O): NIL

38. Noise abatement procedures

NIL

39. Aerodrome charges

NIL

40. Additional information

NIL
