LHPL Pilis Airport

Last updated: 2025.04.17.

1. Aerodrome identification

Aerodrome location indicator: LHPL

Aerodrome name: Pilis Airport

Aerodrome place name: Pilis

2. Contact

Address: 2721 Pilis, Külterület, 023/12 hrsz.
Phone: +36-20/937-6955
E-mail: drmarkovics@gmail.com

3. Gallery

4. Charts

Name	Identification	Download	Effective date

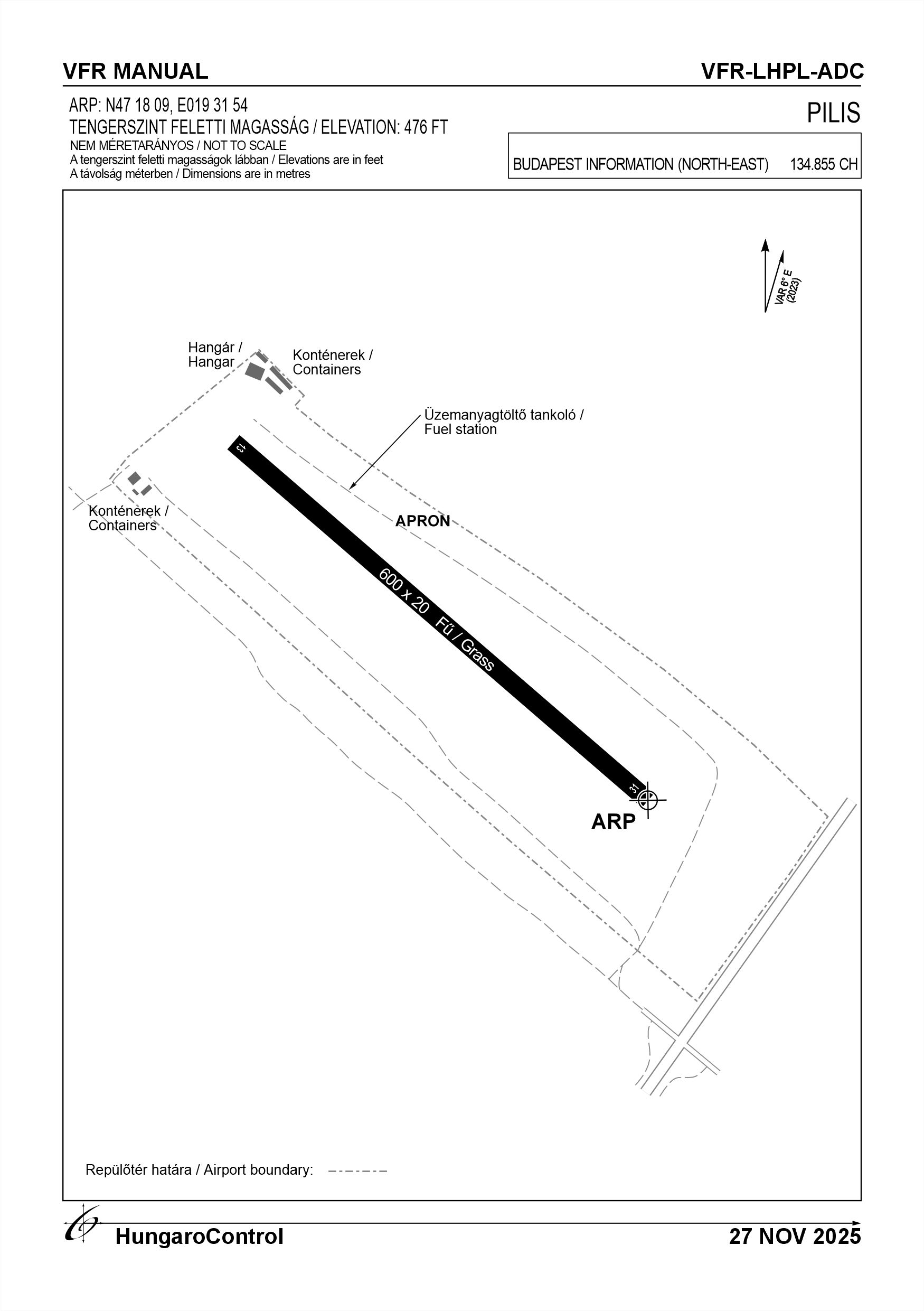

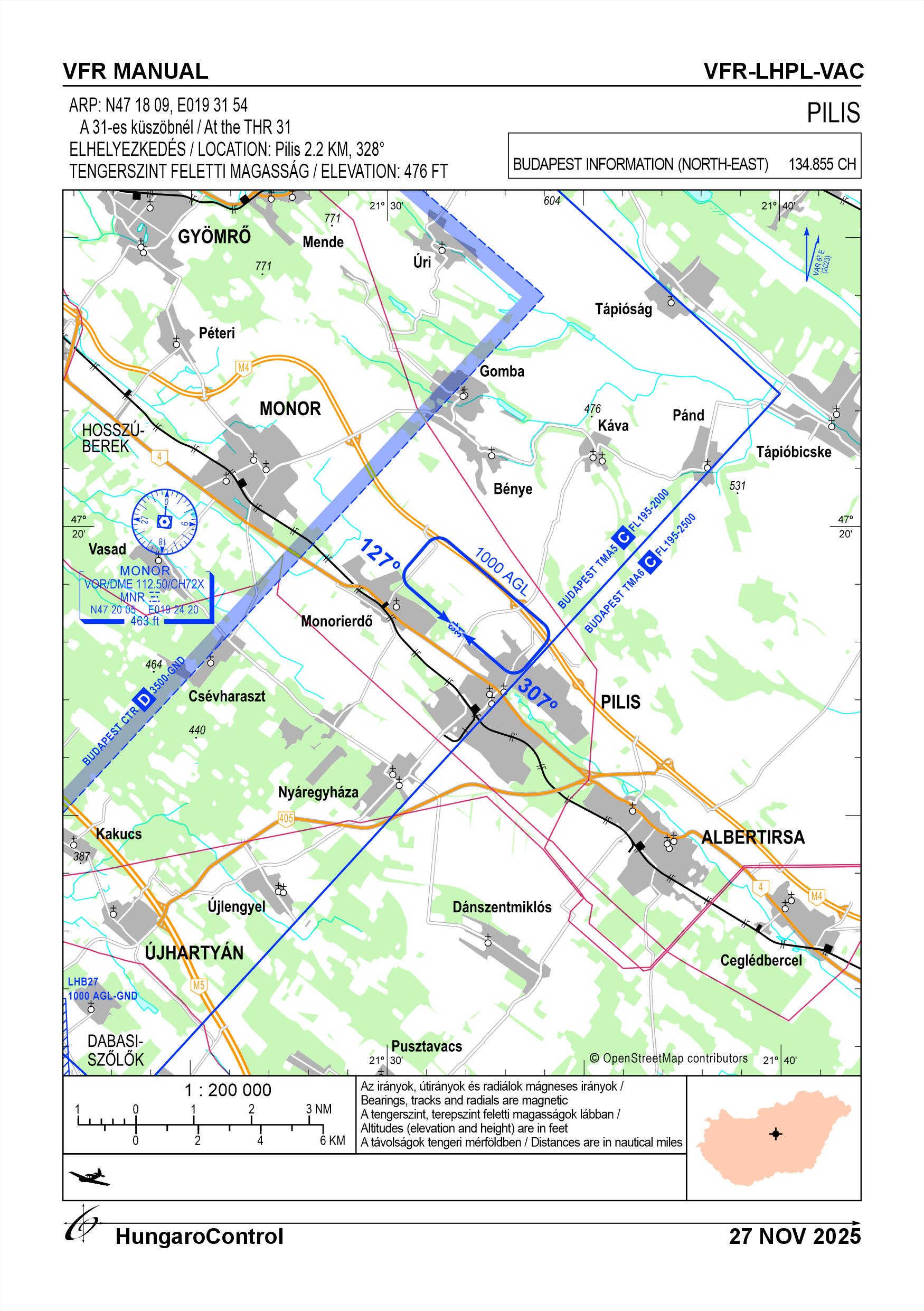

ADC, VAC	VFR-LHPL-ADC, VFR-LHPL-VAC		2025.04.17.

5. Aerodrome geographical and administrative data

ARP data

Coordinates: 471809N 0193154E

Site at aerodrome: At the THR 31

Location of aerodrome

Distance from city (KM): Pilis 2.2 KM

Direction from city: 328°

Elevation: 476 FT

Magnetic variation data

Degree of magnetic variation ( °): 5.8° E

Annual change ( °): +0.1°

Year of survey: 2023

Aerodrome operator data

Name: Dr. Markovics János

Address: 1106 Budapest, Pilisi u. 30. fszt 2. ajtó

Phone: +36-20/937-6955

Fax: NIL

Web: NIL

E-mail: drmarkovics@gmail.com

Aerodrome data

Name: 2721 Pilis, Külterület, 023/12 hrsz.

Phone: +36-20/937-6955 (Dr. Markovics János)

Fax: NIL

Web: NIL

E-mail: drmarkovics@gmail.com

AFS: NIL

SITA: NIL

Others: NIL

Type of traffic allowed at the aerodrome: VFR

Remarks: Special airport for civil use

6. Air traffic services communication facitlities

Service designation	Call sign	Channel	Languages used	Hours of operation	Remarks
NIL	NIL	NIL	NIL	NIL	NIL

7. Operation hours

AD Administration: With prior permission from the owner, from 08:00 LT until the end of civil twilight. The airport is open from April to September 30 due to weather conditions.

Customs and immigration: NIL

Health and sanitation: NIL

AIS Briefing Office: NIL

ATS Reporting Office (ARO): NIL

MET Briefing Office: NIL

ATS: NIL

Fuelling: NIL

Handling: NIL

Security: NIL

De-icing: NIL

Remarks: NIL

8. Available handling services and facilities

Cargo-handling facilities: NIL

Fuel types: NIL

Oil types: NIL

Fuelling facilities and capacity: 2 x 20 liter metal fuel cans
1 x 5 liter metal funnel with deerskin filter
1 x fuel filler ladder

De-icing facilities: NIL

Hangar space for visiting aircraft: NIL

Repair facilities for visiting aircraft: NIL

Remarks: NIL

9. Passenger facilities

Hotels: NIL

Restaurants: NIL

Transportation: NIL

Medical facilities: NIL

Bank and Post Office: NIL

Tourist Office: NIL

Remarks: NIL

10. Available rescue and fire fighting services

Aerodrome catogory for fire fighting: Category 3 as defined in Annex 3 to Government Decree 85/2024 (IV.17)

Available rescue and fire fighting services: at least 1 person with a fire protection specialist examination as required by Decree 45/2011. (XII. 7.) of the Ministry of the Interior

Rescue and fire fighting equipment: Equipment required by point 2.9 of Annex 3 to Government Decree 85/2024 (IV. 17);
Available extinguishing capacity: 355 OE: 6 and 12 kg 34A ABC powder extinguisher, 20 kg sand

Capability for removal of disabled aircraft: 1 Citroen Jumper vehicle, 3.5 t

Remarks: Category 4 aircraft may be used for a maximum of 60 operations per month

11. Clearing

Types of clearing equipment: NIL

Clearance priorities: NIL

Remarks: NIL

12. Aprons

Designation	Surface	Strength	Remarks
E-1	Grass	5.5 t (2 t)	The airport manager will provide information on the condition of the apron upon request.

13. Taxiways

Designation	Surface	Strength	Width (M)	Remarks
NIL	NIL	NIL	NIL	NIL

14. Checkpoints

Altimeter checkpoints and locations data

Coordinates: NIL

Technical data: NIL

VOR checkpoints: NIL

INS checkpoints: NIL

Remarks: NIL

15. Surface movement guidance and control system and markings

Use of aircraft stand ID signs, TWY guide lines and visual docking/parking guidance system of aircraft stands: NIL

RWY and TWY markings and lighting: Runway threshold pavement markings and markings, lighting systems

Stop bars: NIL

Remarks: NIL

16. Runways (RWY)

RWY designator	True bearing	Magnetic bearing	Length (M)	Width (M)	Strength	Surface	Remarks
13	132°	126°	600	20	5.7 t (2 t)	Grass	The airport manager will provide information on the runway conditions upon request
31	312°	306°	600	20	5.7 t (2 t)	Grass	The airport manager will provide information on the runway conditions upon request.

17. Aerodrome obstacles

RWY designator	Obstacle type	Elevation	Height	Coordinates	Remarks
NIL	NIL	NIL	NIL	NIL	NIL

18. Stopways (SWY)

RWY designator	Length (M)	Width (M)	Strength	Surface	Slope (%)	Remarks
13	NIL	NIL	NIL	NIL	NIL	NIL
31	NIL	NIL	NIL	NIL	NIL	NIL

19. Clearways (CWY)

RWY designator	Length (M)	Width (M)	Slope (%)	Remarks
13	NIL	NIL	NIL	NIL
31	NIL	NIL	NIL	NIL

20. STRIP

RWY designator	Length (M)	Width (M)	Remarks
13	NIL	NIL	NIL
31	NIL	NIL	NIL

21. RESA

RWY designator	Length (M)	Width (M)	Surface	Obstacle free zone (OFZ)	Remarks
13	NIL	NIL	NIL	NIL	NIL
31	NIL	NIL	NIL	NIL	NIL

22. Declared distances

RWY designator	TORA (M)	TODA (M)	ASDA (M)	LDA (M)	Remarks
13	600	600	600	600	NIL
31	600	600	600	600	NIL

23. Approach lighting

RWY designator	Type	Length (M)	Intensity	Remarks
13	NIL	NIL	NIL	NIL
31	NIL	NIL	NIL	NIL

24. Threshold lighting

RWY designator	Colour	Wing bar lights	Remarks
13	NIL	NIL	NIL
31	NIL	NIL	NIL

25. Visual approach slope indicator system lighting

RWY designator	Type	Data	Remarks
13	NIL	NIL	NIL
31	NIL	NIL	NIL

26. Touchdone zone lighting

RWY designator	Length of lighting (M)	Remarks
13	NIL	NIL
31	NIL	NIL

27. Runway centreline lighting

RWY designator	Length (M)	Spacing (M)	Colour	Intensity	Remarks
13	NIL	NIL	NIL	NIL	NIL
31	NIL	NIL	NIL	NIL	NIL

28. Runway edgeline lighting

RWY designator	Length (M)	Spacing (M)	Colour	Intensity	Remarks
13	NIL	NIL	NIL	NIL	NIL
31	NIL	NIL	NIL	NIL	NIL

29. Runway end lighting

RWY designator	Colour	Remarks
13	NIL	NIL
31	NIL	NIL

30. Runway wing bars lighting

RWY designator	Colour	Remarks
13	NIL	NIL
31	NIL	NIL

31. Stopway lighting

RWY designator	Length of lighting (M)	Colour	Remarks
13	NIL	NIL	NIL
31	NIL	NIL	NIL

32. Other lighting, secondary power supply

ABN/IBN location, charasteristics and hours of operation: NIL

LDI location and lighting: NIL

Anemometer location and lighting: NIL

4Centre line lighting: NIL

TWY edge line lighting: NIL

Secondary power supply: NIL

Switch-over time: NIL

Remarks: NIL

33. Helicopter landing area

Coordinates TLOF or THR of FATO: NIL

TLOF and/or FATO elevation: NIL

TLOF and FATO area marking: NIL

TLOF and FATO area dimensions (M): NIL

TLOF and FATO area surface: NIL

TLOF and FATO area strength: NIL

True BRG of FATO: NIL

MAG BRG of FATO: NIL

Declared distances available: NIL

APP and FATO lighting: NIL

Remarks: NIL

34. Meteorological information provider

Associated MET Office: HungaroMet Magyar Meteorológiai Szolgáltató Nonprofit Zrt. (HungaroMet Zrt.), Unit of Aviation Meteorology

Hours of service: H24

Office responsible for TAF preparation: HungaroMet Magyar Meteorológiai Szolgáltató Nonprofit Zrt. (HungaroMet Zrt.), Unit of Aviation Meteorology

Periods of validity: NIL

Interval of issuance: NIL

Type of landing forecast: NIL

Landing forecast interval of issuance: NIL

Briefing/consultation provided: Written briefing: https://aviation.met.hu;
Consultation via phone: +36-90/603-421;
Consultation via e-mail: rvo@met.hu

Flight documentation: Charts, abbreviated plain language text

Language(s) used: HU, EN

Charts and other information available for briefing or consultation: Charts, aerodrome reports and forecasts in EUR region, area forecasts, MET. observations and warnings in Budapest FIR

Supplementary equipment available for providing information: Self-briefing via aviation.met.hu

ATS Units provided with information: Budapest FIC (on request)

Remarks: NIL

35. Air traffic service airspace

Designation: NIL

Lateral limits: NIL

Vertical limits (FT): NIL

Airspace classification: NIL

ATS unit call sign: NIL

Languages used: NIL

Transition altitude (FT): NIL

Remarks: NIL

36. Radio navigation and landing aids

Type of aid	Identification	Frequencies (MHZ, CH)	hours of operation	Position of transmitting antenna coordinates	Elevation of DME transmitting antenna (FT)	Remarks
NIL	NIL	NIL	NIL	NIL	NIL	NIL

37. Local aerodrome regulations

Specific rules for the use of the airport:
- Pilis Airport is a special civil airport not open to public traffic.
- Airport operating hours: from 08:00 LT until the end of civil twilight, subject to prior permission from the owner. The airport is open from April to September 30 due to weather conditions.
- Only daytime VFR flights are permitted at the airport
- When performing local flights and at every take-off, aircraft status reports must be made on the “National Free Use” (NLA 1) frequency 133.415 MHz. The call sign is: “Pilis – Airport”.
- Procedures related to local flights:
Taking into account the wind directions, flights can be made on the following runway directions at the airport:
- In the case of runway 31;
The direction of the traffic circle is RIGHT
- In the case of runway 16;
The direction of the traffic circle is LEFT
The traffic circles are flown at a minimum altitude of 1,000 feet (AGL) above populated areas.
Prohibitions related to the use of the airport and aircraft:
The airport may only be used for take-off and landing by aircraft whose reference runway length, i.e. the minimum runway length required for take-off, specified in the air operations instructions, is the same as the available runway length, subject to the prior permission of the owner.
For more information, see the Airport Rules.

Activities at the airport (Yes / No)

Unmanned aerial vehicle (D): NIL

Ballon (B): NIL

Ultralight (U): NIL

Hang glider (N): NIL

Short take-off and landing (R): NIL

Landplane (L): NIL

Paraglider (P): NIL

Glider (G): NIL

Amphibian (A): NIL

Helicopter (H): NIL

Gyrocopter (G): NIL

Tilt-wing aircraft (T): NIL

Other (O): NIL

38. Noise abatement procedures

In order to reduce the noise pollution in the environment of the “Pilis Airport”, the following local regulations apply:
- The engine check of aircraft, which requires a power setting higher than the base gas, can only be performed on the runway, in the take-off position;
- The height of the traffic circle is 300 m AGL. Deviating from the prescribed traffic circle is only permitted for flight safety reasons;
- It is prohibited for arriving and departing motorized aircraft to fly over residential areas below a height of 300 m AGL;
Taking into account the wind directions, flights can be performed on the following runway directions at the airport:
- Right school circle for take-off runway 31
- Left school circle for take-off runway 13
Deviation from the specified school circle (traffic circle) is not permitted!
Note: at Pilis airport, only Cat.”A” motor aircraft (e.g.: Motor Falke, UL, C 150, C 152, C172) with a sound pressure level not exceeding 85 dBA (measured at take-off power) are permitted for training flights.
Training school circle flights with motor aircraft exceeding 85 dBA (measured at take-off power) and weighing over 5,700 kg (e.g.: Z – 142, Z – 43, C – 182, Piper Aztek, etc.) are not permitted at the airport.
For more information, see the Airport Rules.

39. Aerodrome charges

NIL

40. Additional information

For more information, see the Airport Rules.
