LHGU Győrújbarát Heliport

Last updated: 2024.12.19.

1. Aerodrome identification

Aerodrome location indicator: LHGU

Aerodrome name: Győrújbarát Heliport

Aerodrome place name: Győrújbarát

2. Contact

Address: 9081 Győrújbarát, Széchenyi krt. 39/11.
Phone: +36-20/969-0399
E-mail: sarkozymihaly56@gmail.com

3. Gallery

4. Charts

Name	Identification	Download	Effective date

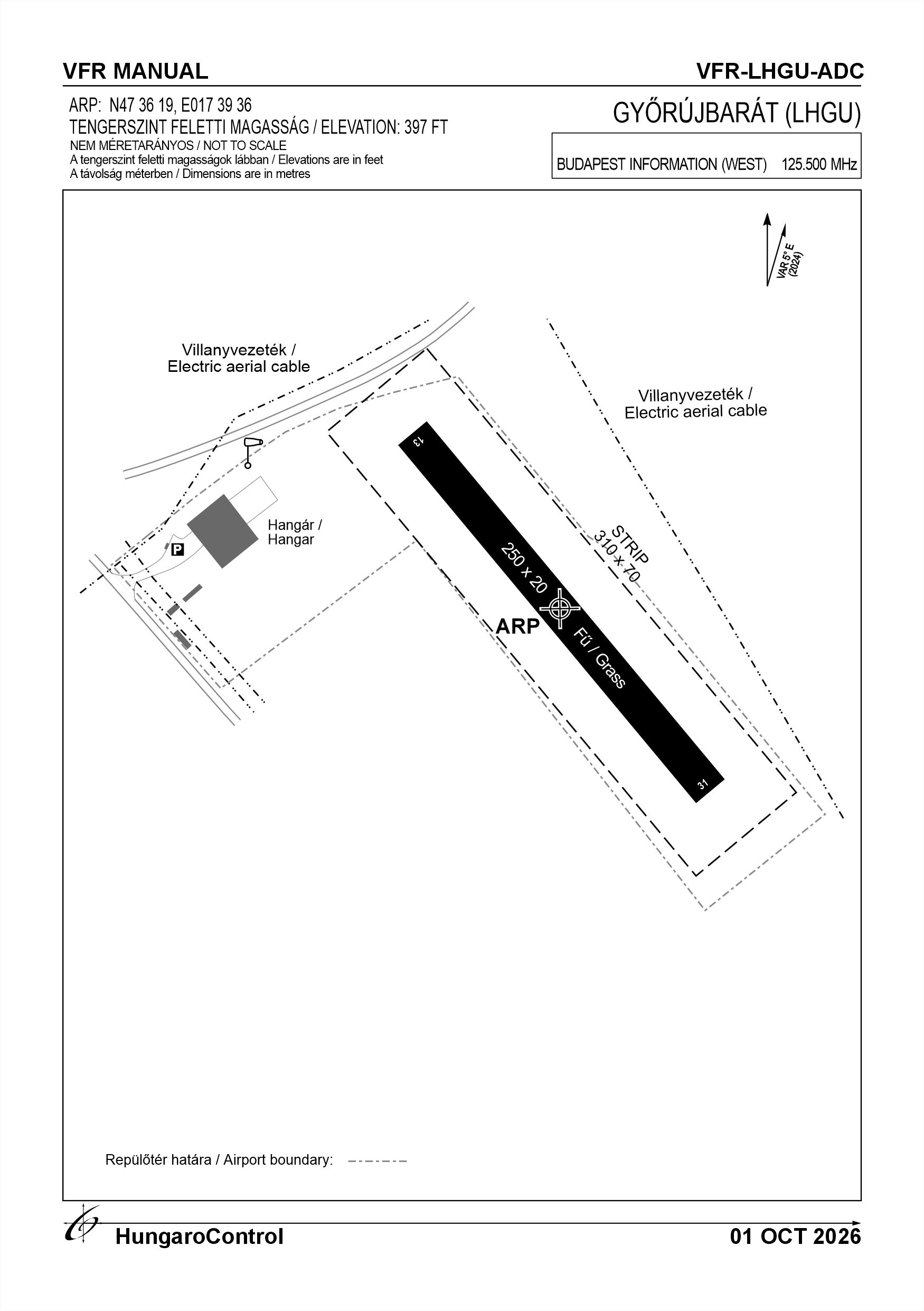

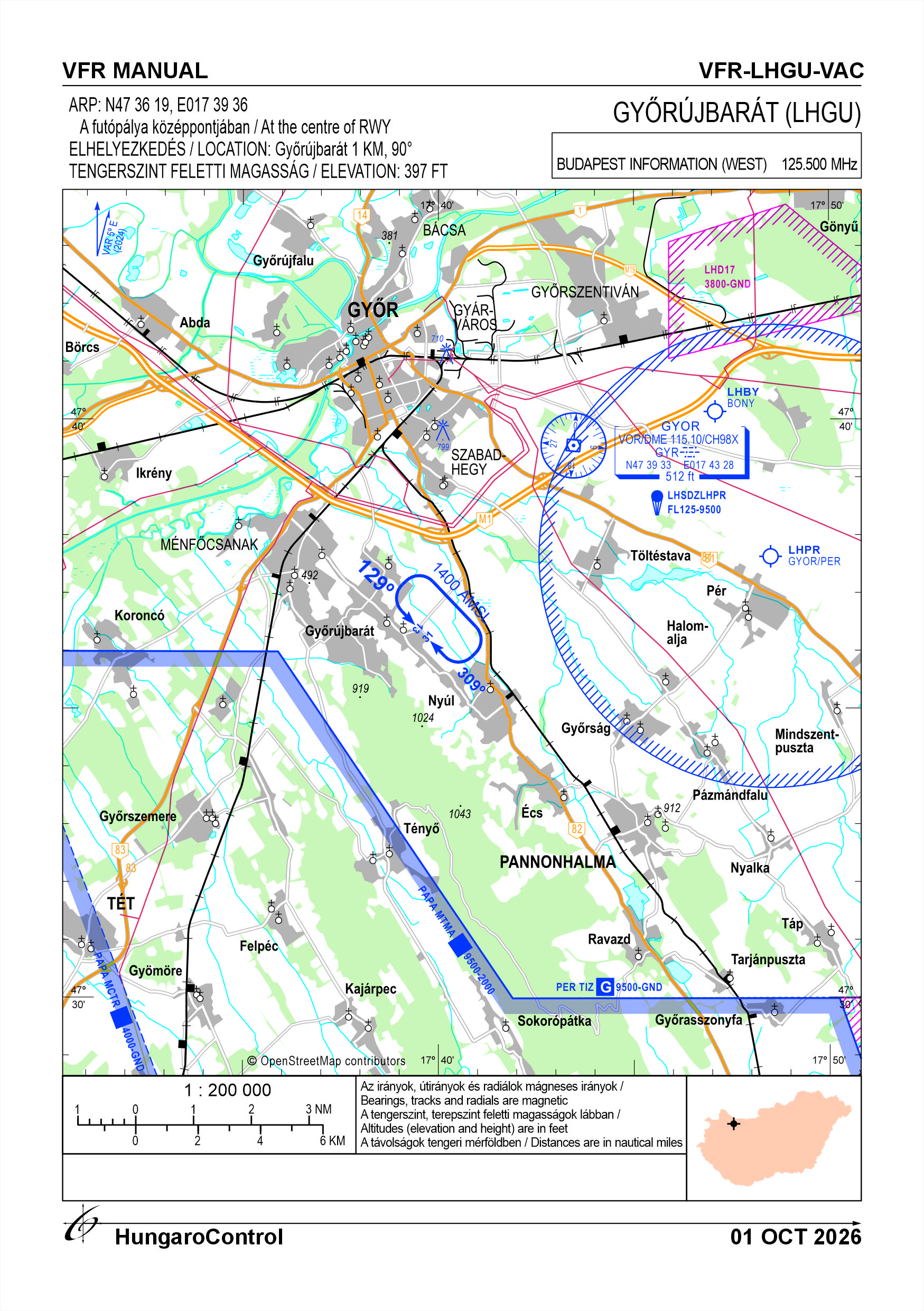

ADC, VAC	VFR-LHGU-ADC, VFR-LHGU-VAC		2022.12.01.

5. Aerodrome geographical and administrative data

ARP data

Coordinates: 473618N 0173937E

Site at aerodrome: At the centre of helipad

Location of aerodrome

Distance from city (KM): Győrújbarát 1 KM

Direction from city: 100°

Elevation: 397 FT

Magnetic variation data

Degree of magnetic variation ( °): 5° E

Annual change ( °): +0.1°

Year of survey: 2020

Aerodrome operator data

Name: Heliszolg Kft.

Address: 9081 Győrújbarát, Széchenyi krt. 39/11.

Phone: +36-20/969-0399

Fax: NIL

Web: NIL

E-mail: sarkozymihaly56@gmail.com

Aerodrome data

Name: 9081 Győrújbarát, Széchenyi krt. 39/11.

Phone: +36-20/969-0399

Fax: NIL

Web: NIL

E-mail: sarkozymihaly56@gmail.com

AFS: NIL

SITA: NIL

Others: NIL

Type of traffic allowed at the aerodrome: VFR

Remarks: nem nyilvános repülőtér ( Heliport)

6. Air traffic services communication facitlities

Service designation	Call sign	Channel	Languages used	Hours of operation	Remarks
NIL	NIL	NIL	NIL	NIL	NIL

7. Operation hours

AD Administration: 06.00 LT - sunset

Customs and immigration: NIL

Health and sanitation: NIL

AIS Briefing Office: NIL

ATS Reporting Office (ARO): NIL

MET Briefing Office: NIL

ATS: NIL

Fuelling: NIL

Handling: NIL

Security: H24

De-icing: NIL

Remarks: NIL

8. Available handling services and facilities

Cargo-handling facilities: NIL

Fuel types: Avgas 100 LL

Oil types: Aerokomol motor oil

Fuelling facilities and capacity: Fuel station, AVGAS 100 LL, 16 m³

De-icing facilities: NIL

Hangar space for visiting aircraft: Limited, by prior arrangement

Repair facilities for visiting aircraft: Limited, by prior arrangement

Remarks: NIL

9. Passenger facilities

Hotels: NIL

Restaurants: NIL

Transportation: NIL

Medical facilities: NIL

Bank and Post Office: NIL

Tourist Office: NIL

Remarks: NIL

10. Available rescue and fire fighting services

Aerodrome catogory for fire fighting: Non-ICAO category

Available rescue and fire fighting services: NIL

Rescue and fire fighting equipment: 1 x 50 kg foam fire extinguisher bottle

Capability for removal of disabled aircraft: NIL

Remarks: NIL

11. Clearing

Types of clearing equipment: NIL

Clearance priorities: NIL

Remarks: NIL

12. Aprons

Designation	Surface	Strength	Remarks
NIL	NIL	NIL	NIL

13. Taxiways

Designation	Surface	Strength	Width (M)	Remarks
NIL	NIL	NIL	NIL	NIL

14. Checkpoints

Altimeter checkpoints and locations data

Coordinates: NIL

Technical data: NIL

VOR checkpoints: NIL

INS checkpoints: NIL

Remarks: NIL

15. Surface movement guidance and control system and markings

Use of aircraft stand ID signs, TWY guide lines and visual docking/parking guidance system of aircraft stands: NIL

RWY and TWY markings and lighting: NIL

Stop bars: NIL

Remarks: NIL

16. Runways (RWY)

RWY designator	True bearing	Magnetic bearing	Length (M)	Width (M)	Strength	Surface	Remarks
13	NIL	NIL	TLOF 30 X 30, FATO 50 X 50	NIL	NIL	TLOF Solid, FATO Grass	NIL
31	NIL	NIL	TLOF 30 X 30, FATO 50 X 50	NIL	NIL	TLOF Solid, FATO Grass	NIL

17. Aerodrome obstacles

RWY designator	Obstacle type	Elevation	Height	Coordinates	Remarks
NIL	Electric aerial cable	121 M	10 M	473622N 0173931E	In the 315° direction

18. Stopways (SWY)

RWY designator	Length (M)	Width (M)	Strength	Surface	Slope (%)	Remarks
NIL	NIL	NIL	NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL	NIL	NIL	NIL

19. Clearways (CWY)

RWY designator	Length (M)	Width (M)	Slope (%)	Remarks
NIL	NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL	NIL

20. STRIP

RWY designator	Length (M)	Width (M)	Remarks
NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL

21. RESA

RWY designator	Length (M)	Width (M)	Surface	Obstacle free zone (OFZ)	Remarks
NIL	NIL	NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL	NIL	NIL

22. Declared distances

RWY designator	TORA (M)	TODA (M)	ASDA (M)	LDA (M)	Remarks
NIL	NIL	NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL	NIL	NIL

23. Approach lighting

RWY designator	Type	Length (M)	Intensity	Remarks
NIL	NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL	NIL

24. Threshold lighting

RWY designator	Colour	Wing bar lights	Remarks
NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL

25. Visual approach slope indicator system lighting

RWY designator	Type	Data	Remarks
NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL

26. Touchdone zone lighting

RWY designator	Length of lighting (M)	Remarks
NIL	NIL	NIL
NIL	NIL	NIL

27. Runway centreline lighting

RWY designator	Length (M)	Spacing (M)	Colour	Intensity	Remarks
NIL	NIL	NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL	NIL	NIL

28. Runway edgeline lighting

RWY designator	Length (M)	Spacing (M)	Colour	Intensity	Remarks
NIL	NIL	NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL	NIL	NIL

29. Runway end lighting

RWY designator	Colour	Remarks
NIL	NIL	NIL
NIL	NIL	NIL

30. Runway wing bars lighting

RWY designator	Colour	Remarks
NIL	NIL	NIL
NIL	NIL	NIL

31. Stopway lighting

RWY designator	Length of lighting (M)	Colour	Remarks
NIL	NIL	NIL	NIL
NIL	NIL	NIL	NIL

32. Other lighting, secondary power supply

ABN/IBN location, charasteristics and hours of operation: NIL

LDI location and lighting: NIL

Anemometer location and lighting: NIL

4Centre line lighting: NIL

TWY edge line lighting: NIL

Secondary power supply: NIL

Switch-over time: NIL

Remarks: NIL

33. Helicopter landing area

Coordinates TLOF or THR of FATO: 473619N 0173936E

TLOF and/or FATO elevation: 121 M

TLOF and FATO area marking: 13/31

TLOF and FATO area dimensions (M): TLOF 30 X 30, FATO 50 X 50

TLOF and FATO area surface: TLOF Solid, FATO Grass

TLOF and FATO area strength: NIL

True BRG of FATO: 135° T 315° T

MAG BRG of FATO: NIL

Declared distances available: 135° T no limit, 315°T 160 M

APP and FATO lighting: NIL

Remarks: NIL

34. Meteorological information provider

Associated MET Office: HungaroMet Magyar Meteorológiai Szolgáltató Nonprofit Zrt. (HungaroMet Zrt.), Unit of Aviation Meteorology

Hours of service: H24

Office responsible for TAF preparation: HungaroMet Magyar Meteorológiai Szolgáltató Nonprofit Zrt. (HungaroMet Zrt.), Unit of Aviation Meteorology

Periods of validity: NIL

Interval of issuance: NIL

Type of landing forecast: NIL

Landing forecast interval of issuance: NIL

Briefing/consultation provided: Written briefing: https://aviation.met.hu;
Consultation via phone: +36-90/603-424;
Consultation via e-mail: rvo@met.hu;

Flight documentation: Charts, abbreviated plain language text

Language(s) used: HU, EN

Charts and other information available for briefing or consultation: Charts, aerodrome reports and forecasts in EUR region, area forecasts, MET. observations and warnings in Budapest FIR

Supplementary equipment available for providing information: Self-briefing via aviation.met.hu

ATS Units provided with information: Budapest FIC (on request)

Remarks: NIL

35. Air traffic service airspace

Designation: NIL

Lateral limits: NIL

Vertical limits (FT): NIL

Airspace classification: NIL

ATS unit call sign: NIL

Languages used: NIL

Transition altitude (FT): NIL

Remarks: NIL

36. Radio navigation and landing aids

Type of aid	Identification	Frequencies (MHZ, CH)	hours of operation	Position of transmitting antenna coordinates	Elevation of DME transmitting antenna (FT)	Remarks
NIL	NIL	NIL	NIL	NIL	NIL	NIL

37. Local aerodrome regulations

Traffic pattern 200 M.

Activities at the airport (Yes / No)

Unmanned aerial vehicle (D): Yes

Ballon (B): No

Ultralight (U): No

Hang glider (N): Yes

Short take-off and landing (R): No

Landplane (L): No

Paraglider (P): No

Glider (G): No

Amphibian (A): No

Helicopter (H): Yes

Gyrocopter (G): No

Tilt-wing aircraft (T): No

Other (O): NIL

38. Noise abatement procedures

It is forbidden to carry out the traffic pattern towards a residential area.

39. Aerodrome charges

None

40. Additional information

The boundary of the airport is a circle with a radius of 2 km. In the case of other air traffic (drones, model airplanes, etc.) you must contact the airport (heliport).
